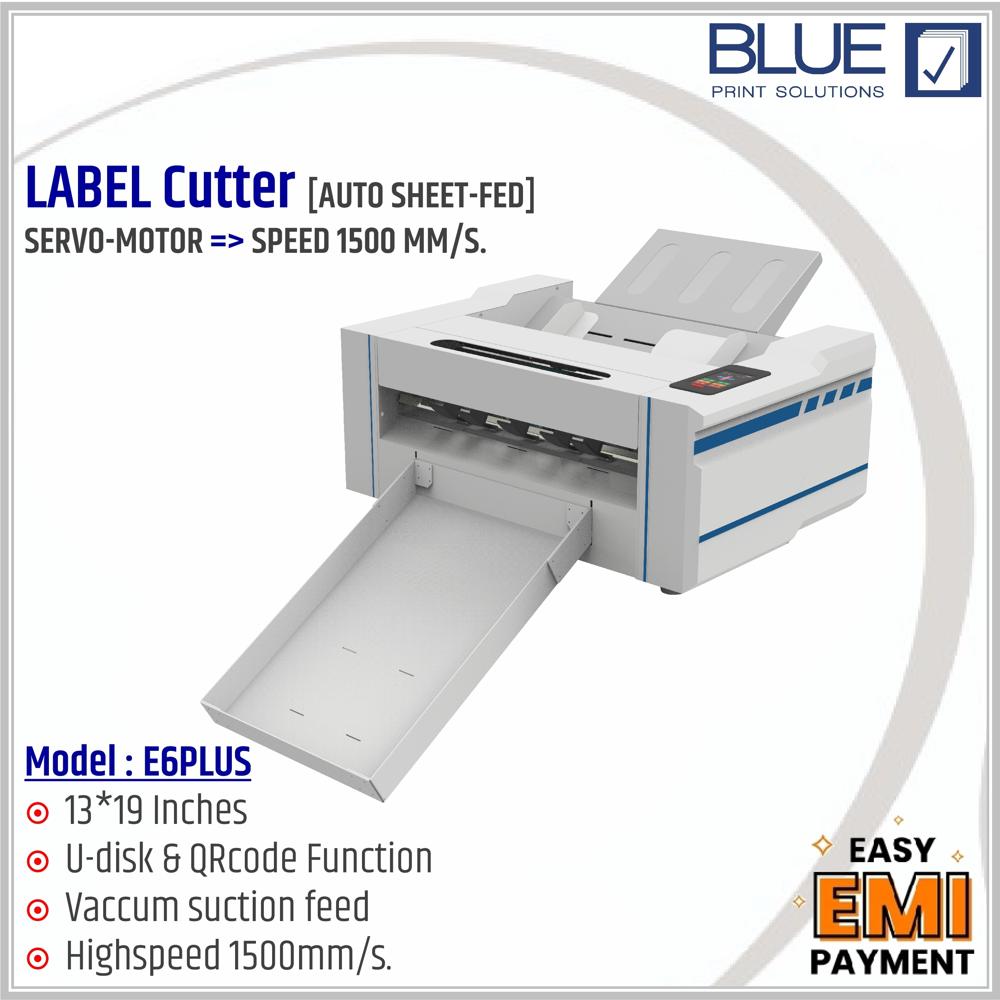

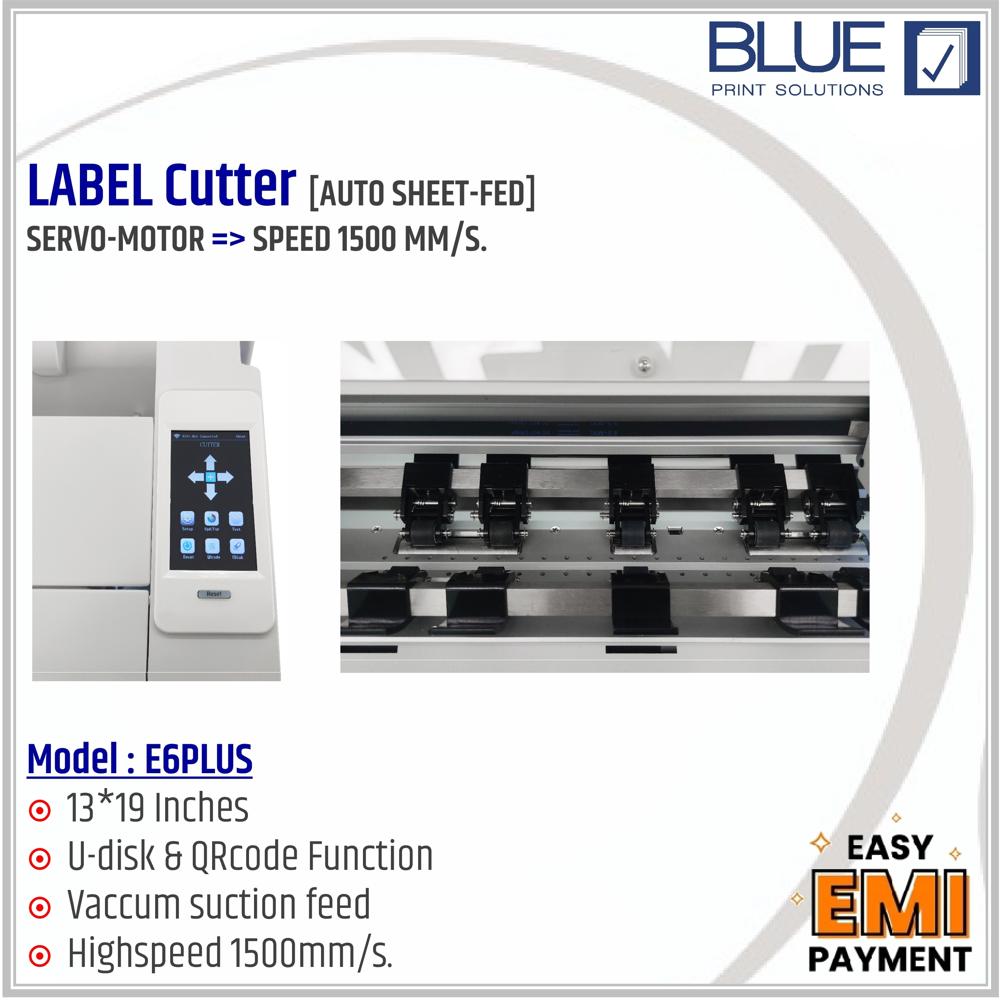

BLUECUT SERVO MOTOR LABEL CUTTERcomes with double pinch roller & vaccum suction for holding sheet, ensure the good cutting performance with twice cutting speed. Its have QR code working system for positioning, cut a mixed different files continuously. The 4.3inches full colourful touch screen which is smooth clock performance. The CCD camera scanning makes it more sensitive for QR code and mark positioning. Just a one key to calibrate the offset of camera. It can autofeed sheet in different size continously A4, A3, A3 Plus and customised size. You can put 200 sheets at a time in paper feeding tray. One cutting file can repeat 2000 times continuously with repeat function. It can be connect with the PC with Ethernet Port, USB, Udisk, WiFi. Heavy duty rubber feeding roller with big power which can feed thicker sheet smoothly. Adobe illustrator, Coreldraw plug-in, Signmaster, Surecut software are compatible software.
Business Type |
Supplier, Trader, Distributor, Importer |
Brand |
BLUECUT |
Model Number |
E6 PLUS |
Max Cutting Speed |
1500mm/s SERVO System |
Max Cutting Area |
483*330mm (13*19 Inches) |
Drive Motor |
X&Y DC High Power SERVO Motor |
Media Hold Method |
Double pinch roller, Vaccum suction |
Main Board |
High speed CPU, Optimal SERVO system |
Nos of Cutting Head |
Single Cutting Head |
Camera positioning speed |
4s |
Accuracy |
0.025mm. |
Cutting Force |
5-1000g (Adjustable) |
Interface |
USB/Udisk/Eathernetport/Wifi (Optional) |
Control Pannel |
4.3inch Full Colourful Touch Screen |
Media way |
Auto feeder |
Cutting Media Types |
Self adhesive, Cardboard, Coated paper, PVC, PET, Kraft paper etc. |
Cutting Method |
Kiss cut, Full cut, Dotted cut, Creasing and drawing |
Gross weight |
66kg. |
Package Dimention |
880*720*580mm. |
Working Power |
150 W |
Port |
Pendra Road, Bilaspur |
Payment Terms |
T/T |
Delivery Time |
One Week |
Packaging Details |
Packed in International Standard Packaging |
Price:
